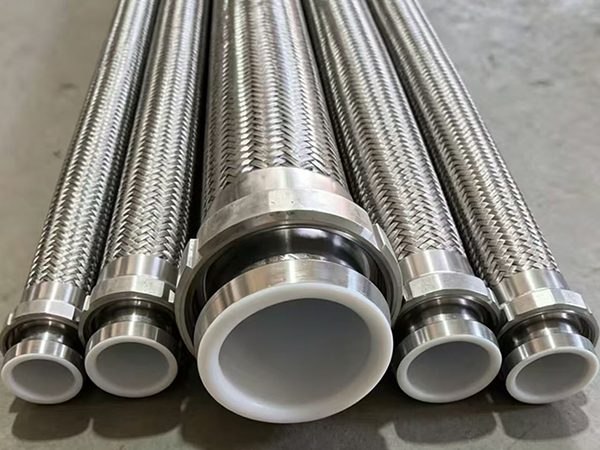

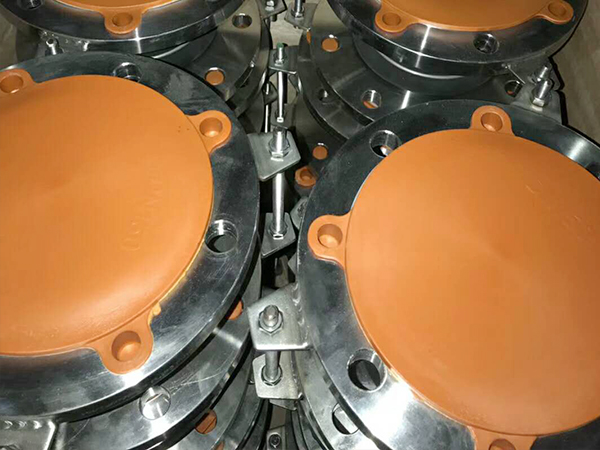

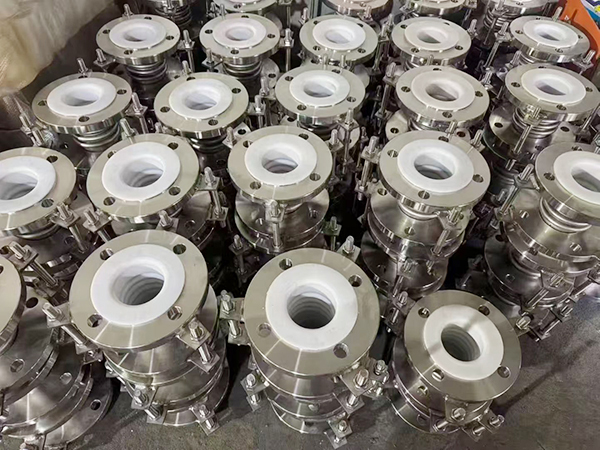

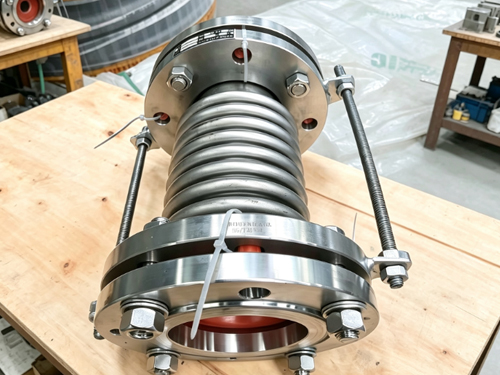

PTFE Lined Bellows Expansion Joint

Product Description

PTFE Lined Compensator, also known as PTFE Lined Bellows Expansion Joint, is a flexible pipeline expansion device designed for highly corrosive chemical media. It combines the excellent corrosion resistance of PTFE (Polytetrafluoroethylene) lining with the flexibility of a metal bellows structure, providing reliable compensation for thermal expansion, vibration, and pipeline displacement.

It is widely used in chemical processing, pharmaceutical, petrochemical, semiconductor, food processing, wastewater treatment, and other industries where pipelines handle aggressive corrosive fluids.

Key Features

Excellent Chemical Resistance
PTFE lining provides outstanding resistance to acids, alkalis, solvents, and various corrosive chemicals.

High Temperature Performance
Suitable for demanding temperature conditions while maintaining stable chemical properties.

Flexible Movement Compensation
Absorbs axial, lateral, and angular movements caused by thermal expansion, vibration, and equipment operation.

Leak Prevention Design
The PTFE liner provides an additional protective layer to reduce corrosion damage and extend service life.

Customized Solutions Available
Available in different sizes, pressure ratings, flange standards, and movement requirements according to customer specifications.

Applications

• Chemical Processing Pipelines

• Acid and Alkali Transfer Systems

• Petrochemical Equipment

• Pharmaceutical Production Lines

• Semiconductor Manufacturing Systems

• Wastewater Treatment Plants

• Corrosive Gas and Liquid Pipelines

• Industrial Process Piping Systems

Technical Specifications

• Product Type: PTFE Lined Bellows Expansion Joint

• Medium: Acid, Alkali, Chemical Fluid, Corrosive Gas

• Lining Material: PTFE / F4

• Bellows Material: Stainless Steel / Alloy Steel

• Connection: Flange Connection / Welding Connection

• Movement Type: Axial, Lateral, Angular Compensation

• Design: Customized according to operating conditions

Advantages

• Superior corrosion resistance

• Prevents chemical media contact with metal parts

• Reduces pipeline stress

• Suitable for harsh chemical environments

• Longer service life compared with conventional metal joints

• OEM and custom manufacturing available
