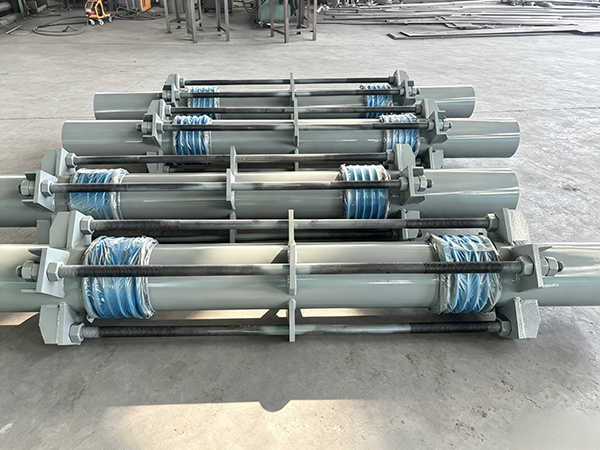

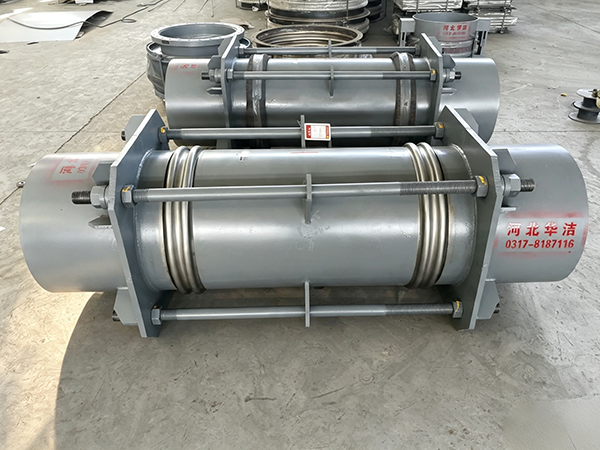

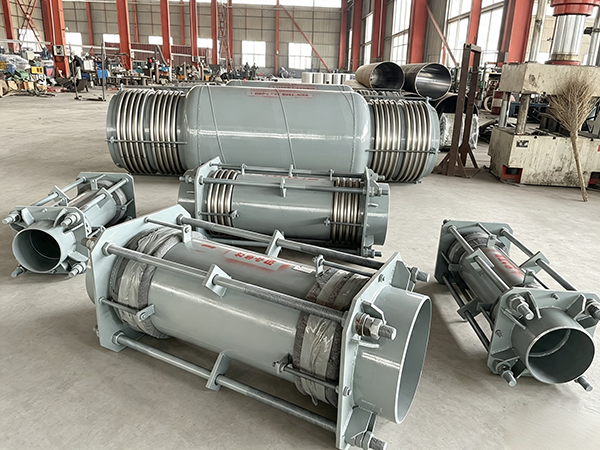

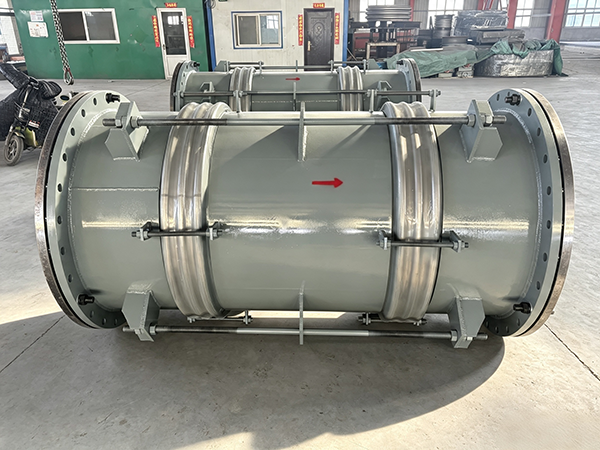

Large Tie Rod Compensator

Product Description

Large Tie Rod Compensator, also known as Large Tie Rod Bellows Expansion Joint, is a heavy-duty pipeline expansion device designed for large diameter piping systems and high displacement applications. It uses reinforced tie rods to control pressure thrust and provide structural stability while absorbing lateral and angular movements caused by thermal expansion, vibration, and pipeline deformation.

It is widely used in power plants, petrochemical industries, steel mills, chemical plants, heating systems, and large-scale industrial pipeline projects.

Key Features

High Pressure Thrust Control
Equipped with strong tie rods to withstand internal pressure forces and prevent excessive movement of the pipeline system.

Large Displacement Compensation
Designed for large diameter pipelines requiring significant lateral and angular movement absorption.

Heavy Duty Structure
Robust construction ensures reliable performance under high-temperature, high-pressure, and industrial operating conditions.

Excellent Vibration Absorption
Reduces vibration stress and protects connected equipment and pipeline systems.

Customized Design Available
Manufactured according to pipeline diameter, pressure, temperature, movement requirements, and installation conditions.

Applications

• Power Plant Steam Pipelines

• Large Diameter Flue Gas Duct Systems

• Petrochemical Pipeline Systems

• District Heating Networks

• Steel Plant Process Pipelines

• Chemical Industry Equipment

• Industrial Exhaust Systems

• High Temperature Pipeline Projects

Technical Specifications

• Product Type: Large Tie Rod Bellows Expansion Joint

• Movement Type: Lateral Movement / Angular Movement / Combined Movement

• Nominal Diameter: Large Diameter Pipeline Applications

• Bellows Material: Stainless Steel / Special Alloy Steel

• Tie Rod Material: Carbon Steel / Stainless Steel

• Connection: Flange / Welding Connection

• Medium: Steam, Gas, Air, Hot Water, Chemical Media

• Temperature & Pressure: Customized According to Working Conditions

Advantages

• Suitable for large-scale industrial pipelines

• Effectively controls pressure thrust

• Improves pipeline system stability

• Reduces equipment and pipe stress

• High fatigue resistance and long service life

• Available for OEM customized production
